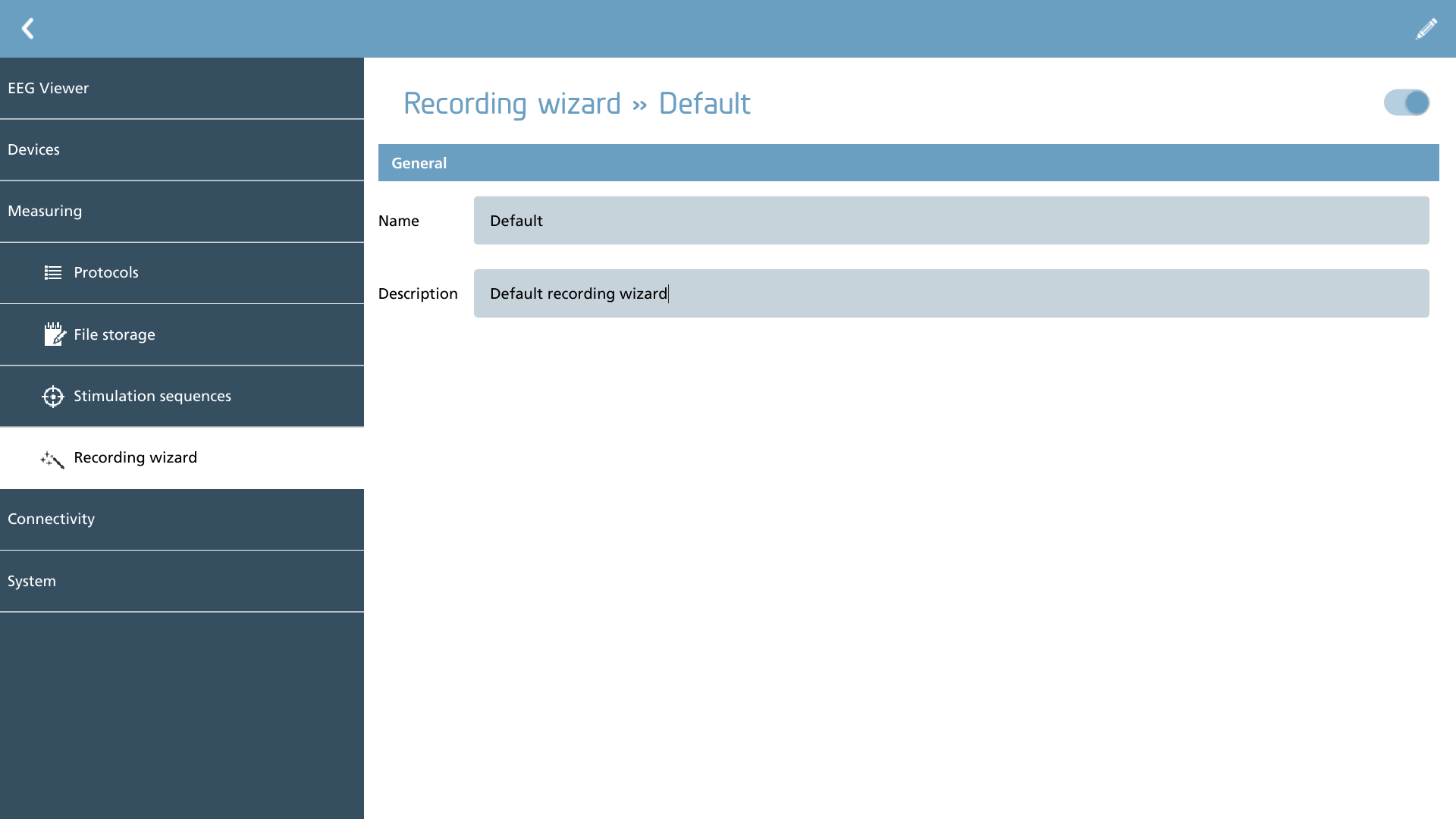

Recording wizard

Edit

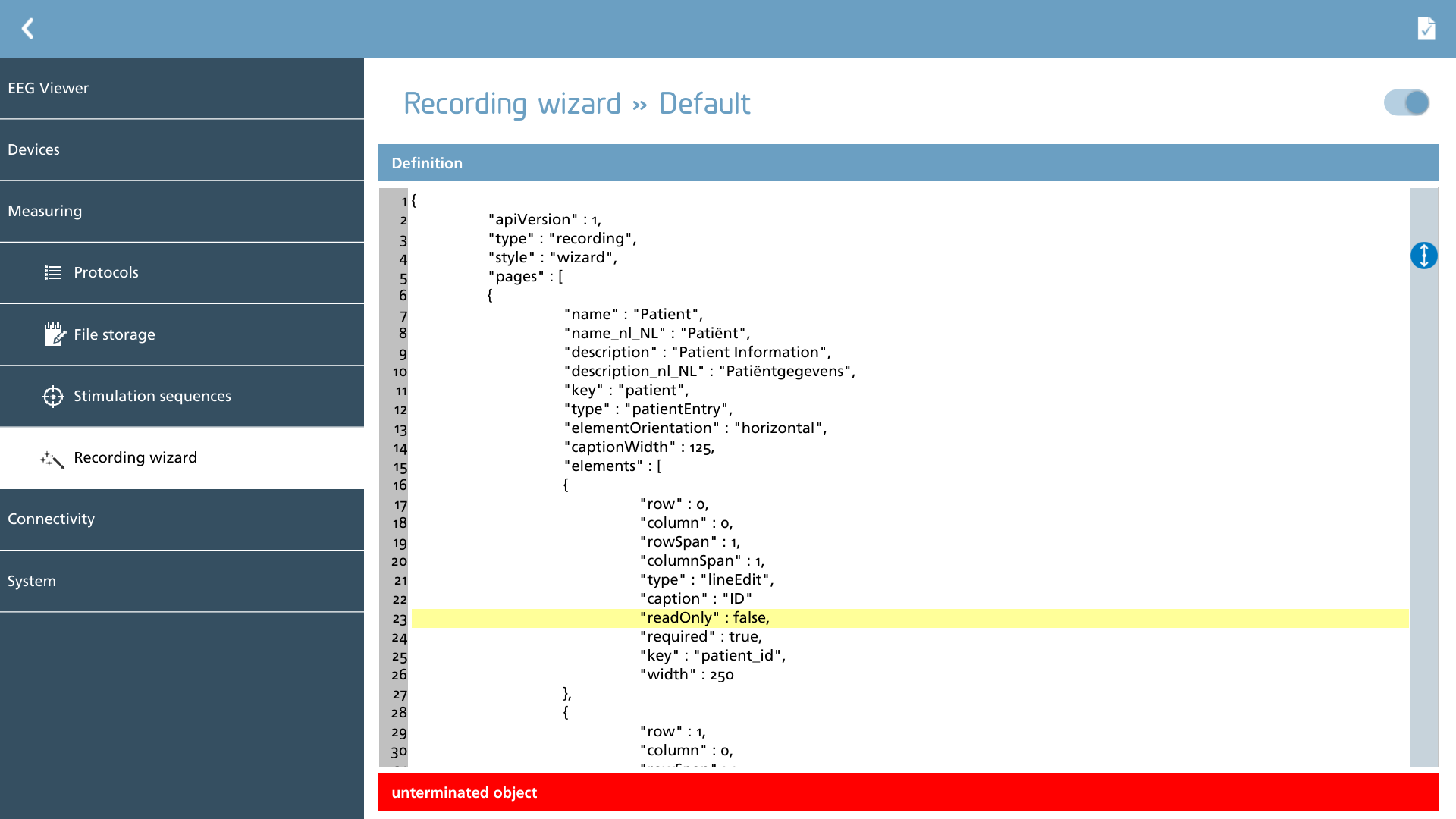

Open the JSON editor for this element

Check

Check the JSON definition for errors

apiVersion

1

X

The API version for this wizard

type

recording

X

The type of wizard this JSON defines

style

wizard

X

The style of this type of wizard

pages

array

X

Array of pages

captionWidth

number

-

-

Optional width in px of the captions. Only active when elementOrientation is set to horizontal

checkPageCompleteTimeout

number

-

-

Defines a timeout in seconds before the page will be validated on correct input. The user has to wait at least this amount of time before proceeding.

description

text

X

X

The description used at the top of the page, before the elements

elementOrientation

horizontal | vertical

-

-

Whether captions should be aligned row-wise (horizontal) or column-wise (vertical). If not specified, horizontal is the default

elements

array

X

-

Array of elements on this page

key

text

-

-

Optional key when data input should be stored

name

text

X

X

The name of the page, used in the step indicator of the wizard

pageTimeout

number

-

-

Set the timeout for the page in terms of seconds. Upon reaching the specified timeout, the wizard will progress to the next page in the sequence. If this element is situated on the final page, the wizard will complete its process. It is important to note that the timeout will only be activated if all conditions of the page are satisfied.

pageVariables

object

-

-

An object containing variables for this page. Can be used to fill in default values.

type

impedance | offlineMeasurement | patientEntry | protocolEntry | generic

X

-

Defines the type of page within a structured framework. It is essential to consider the following limitations:

• Pages designated as patientEntry and protocolEntry must define elements using specific keys, which are outlined in the subsequent element description.

• A protocolEntry type page should always precede an impedance type page, as impedance measurements can only be conducted with a selected amplifier specified in a protocol.

• An offlineMeasurement page must be preceded by a patientEntry page, as offline measurements rely on the patient information to be programmed in conjunction with the offline measurement. This sequence is crucial for accurately matching patients after the recorded files are downloaded.

type

dateCalendar | cameraPreview | checkBox | lineEdit | image | impedanceCheck | multipleChoice | offlineMeasurementConfig | recentPatients | recordingProtocol | spacer

All

X

-

The type of element.

caption

text

All, but spacer

X

X

The caption used along the desired input element.

key

text

All, but spacer

X

-

Defines the key for reference in other pages.

Mandatory key when data input should be stored. Make sure that the following keys are mandatory. If keys are not used as part of user input, provide them as hidden elements with a default value.

patientEntry type of pages should provide patient_id, name, sex and birthday keys. Optional patient_id2 can be provided.

protocolEntry type of pages should provide a protocol_id key.

required

true | false

All, but spacer

-

-

Indicates if an element can be left blank (false) or not (true). When not specified the default is false. Make sure to specify a key value as well, as requirements are checked internally by their corresponding keys.

visible

true | false

All

-

-

Indicates if an element is visible (true) or not (false). When not specified the default is true.

default

text | date | choice | protocolEntry

All

-

-

Set a default value for a specific field. This can be a single value or a composite object. The composite object has the following structure:

"default" : {
	"value" : "S%1O%2M%3@%4_%5",
	"arguments" : [
	{
		"type" : "elementKey",
		"value" : "subject",
		"rightJustified" : true,
		"padLength" : 4,
		"padCharacter" : "0"
	},
	{
		"type" : "elementKey",
		"value" : "occasion",
		"rightJustified" : true,
		"padLength" : 2,
		"padCharacter" : "0"
	},
	{
		"type" : "elementKey",
		"value" : "measurement",
		"rightJustified" : true,
		"padLength" : 2,
		"padCharacter" : "0"
	},
	{
		"type" : "currentDateTime",
		"value" : "ddMMMyyyy",
		"uppercase" : true
	},
	{
		"type" : "currentDateTime",
		"value" : "hhmmss"
	}]
}

Within the composite object, every value can be filled in with arguments in subsequent order. Each %1, %2, etc will be filled with arguments from the arguments array. The specific types which can be used are listed in the composite default argument table below.

column

number

All

-

-

The column in the virtual grid in which the element should be placed.

columnSpan

number

All

-

-

The number of columns the element should span.

row

number

All

-

-

The row in the virtual grid in which the element should be placed.

rowSpan

number

All

-

-

The number of rows the element should span.

displayFormat

text

dateCalender

-

X

The display format for the calender type. See table below for details.

plugin

text

cameraPreview

X

-

The full package name name of the camera plugin to use.

pluginParameters

object

cameraPreview

X

-

The plugin parameters for the selected plugin.

animated

true | false


-

-

If the file is an animated GIF, this flag should be set to true to play the GIF.

file

text


X

-

The filename to the file which should be shown.

repeat

true | false


-

-

Indicates if the animated GIF playback should be repeated (true) or not (false). When not specified the default is false.

scaled

true | false


-

-

Indicates if the image should be scaled to fill up the wizard space (true), or not (false). When not specified the default is false.

headLayout

number

impedanceCheck

-

-

The headlayout to show (0 = 10-20, 1 = 10-10 and 2 = 10-20 MCN). When not specified the default is 0.

mode

basic | impedance

impedanceCheck

-

-

This setting is crucial as it determines the impedance mode for the amplifier. When the ‘impedance’ option is selected, the amplifier will transition to impedance mode (if supported), enabling real-time measurement of impedance. In contrast, choosing ‘basic’ mode will configure the amplifier for signal acquisition, during which it verifies the connection. Upon detecting a signal, the corresponding electrode will be highlighted in green within the overview, providing a visual cue. If no mode is selected, the system will default to ‘impedance’.

referenceImpedance

number | referenceImpedanceObject

impedanceCheck

X

-

When a number is given, the reference impedance is used for all channels and is in kOhm. Any impedance under this number is considered good and indicated with a green light. When a referenceImpedanceObject is given, see the table below for the meaning of the object.

showImpedanceValues

true | false

impedanceCheck

-

-

Show real impedance values next to the electrode position. When not specified the default is false.

showVisibleChannels

array

impedanceCheck

-

-

Shows only the selected channels, who’s names have been specified in the array. When not given any channels, the full electrodemap is shown.

inputMask

text

lineEdit

-

X

The inputmask for this element. See table below for details.

readOnly

true | false

lineEdit | dateCalendar

-

-

Indicates if an element is read-only (true) or not (false). When not specified the default is false.

width

number

lineEdit | dateCalendar | recentPatients

-

-

Specify a fixed width in px for this element.

choices

array

multipleChoice

X

-

The choices for a multiple choice type of element.

count

number

recentPatients

-

-

Specify the number of recent patients to be shown for this element.

height

number

recentPatients

-

-

Specify a fixed height in px for this element.

orientation

horizontal | vertical

spacer

-

-

Whether the spacer should extend horizontally or vertically. If not specified, horizontal is the default.

padCharacter

character

All

-

-

Defines the character to pad the text.

padLength

integer

All

-

-

Defines the pad length for justifying the text.

rightJustified

true | false

All

-

-

Indicates whether the argument should be right justified with pad characters.

type

pageVariable | elementKey | currentDateTime

-

X

-

Determines the type of argument, wether it be a fixed pageVariable, a filled in elementKey (typically an input object) or a currentDateTime.

uppercase

true | false

All

-

-

Indicates if the argument should be converted to uppercase.

value

All

All

X

-

Defines the value to be used as an argument. pageVariable and elementKey should contain the name of the key. currentDateTime value should follow the format in display input table below.

A

ASCII alphabetic character required. A-Z, a-z.

a

ASCII alphabetic character permitted but not required.

N

ASCII alphanumeric character required. A-Z, a-z, 0-9.

n

ASCII alphanumeric character permitted but not required.

X

Any character required.

x

Any character permitted but not required.

9

ASCII digit required. 0-9.

0

ASCII digit permitted but not required.

D

ASCII digit required. 1-9.

d

ASCII digit permitted but not required (1-9).

#

ASCII digit or plus/minus sign permitted but not required.

H

Hexadecimal character required. A-F, a-f, 0-9.

h

Hexadecimal character permitted but not required.

B

Binary character required. 0-1.

b

Binary character permitted but not required.

d

the day as number without a leading zero (1 to 31)

dd

the day as number with a leading zero (01 to 31)

ddd

the abbreviated localized day name (e.g. 'Mon' to 'Sun').

dddd

the long localized day name (e.g. 'Monday' to 'Sunday').

M

the month as number without a leading zero (1-12)

MM

the month as number with a leading zero (01-12)

MMM

the abbreviated localized month name (e.g. 'Jan' to 'Dec').

MMMM

the long localized month name (e.g. 'January' to 'December').

yy

the year as two digit number (00-99)

yyyy

the year as four digit number

dd.MM.yyyy

02.07.1969

MMM d yy

Jul 2 69

MMMM d yy

July 2 69

baseValue

number

X

-

The overall impedance threshold in kOhm. Will be used when channel specific impedance is not specified.

disconnectedValue

number

-

-

The maximum impedance which above a channel is considered disconnected in kOhm. Default is 1000.

otherReference

array

-

-

Defines specific impedance references for individual or groups of channels. Each element consists of an array of channel names with key “channel” and a value in kOhm with key “value”.
